Water Safety: Water Harvesting // Casey Last, Evan Warder

The project proposes to create a new rainwater collection system in the Walled City of Jaipur. Water from roofs, collected by tapping into existing pipe networks is directed along the street and brought to a series of water tanks. Hybridized light weight structures provide public space and amenities for citizens of Jaipur along with introducing a new infrastructural spine.

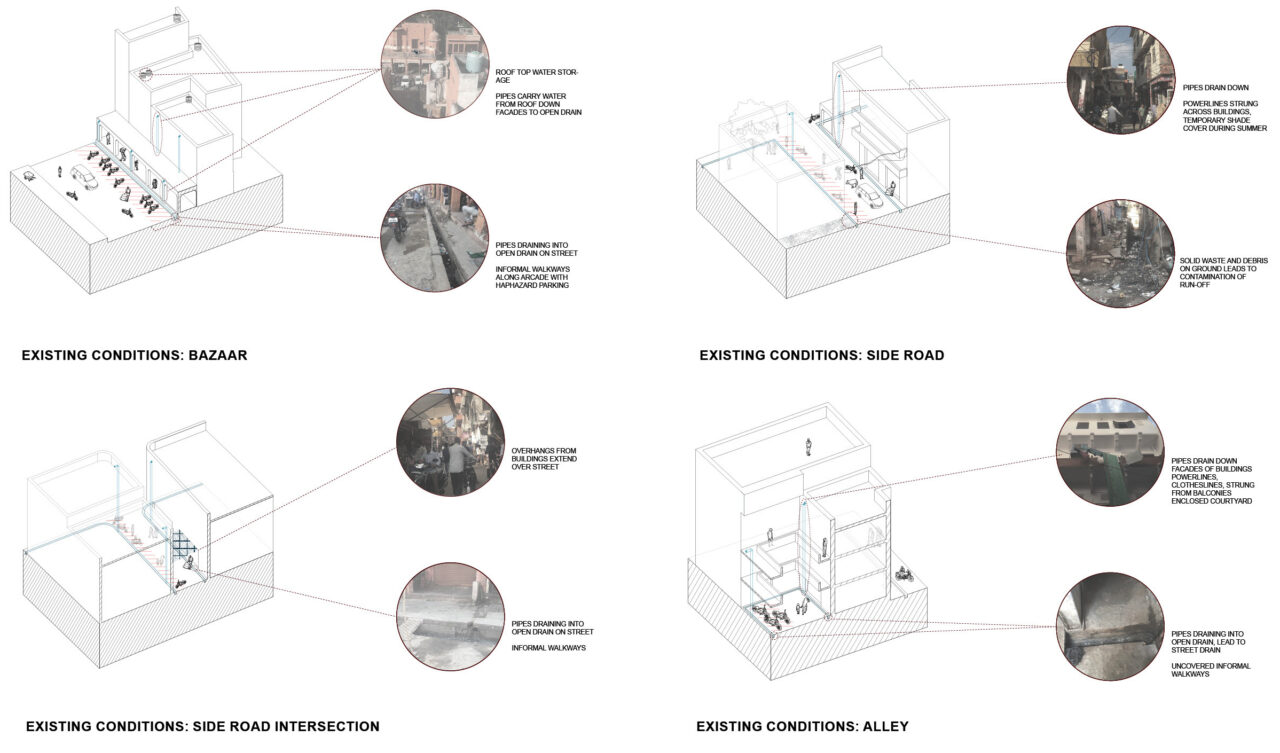

ANALYSIS OF EXISTING RAIN WATER FLOW BY STREET TYPE FOR WALLED CITY JAIPUR

The Walled city is the oldest and densest part of Jaipur. The original water management system, not designed for the present state of population density and occupation, is crumbling. Presently, the rain water that falls on the roofs of buildings in the walled city is collected through rain water pipes and directed onto the street where it mixes with storm water runoff in an open sewer, filled with trash. The project proposes a new infrastructural spine along the streets that catches the relatively clean rain water before it mixes with the street runoff and channels it into storage tanks from where it is distributed back to the city for domestic use. This spine doubles up shade structures that organize the street section and informal activity happening on the street along with accomodating networks for sewage collection, electricity supply and clean water supply.

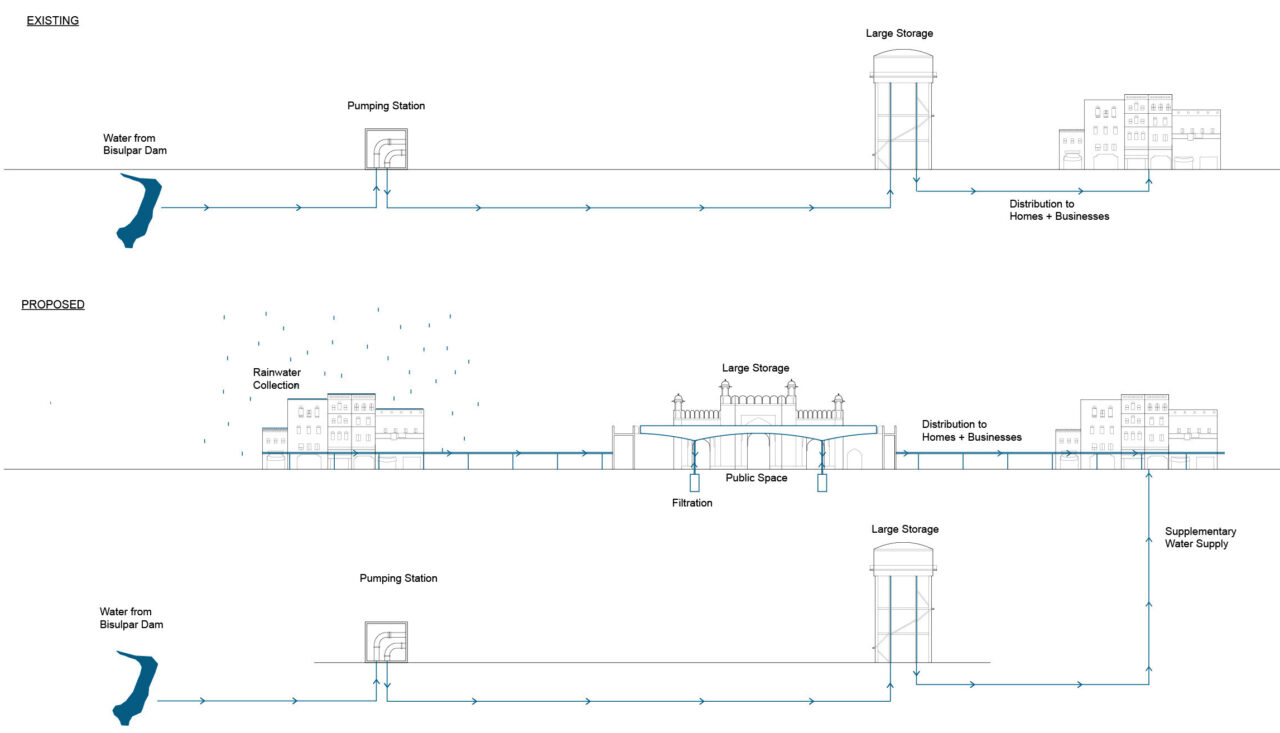

Existing versus proposed water supply and management in the Walled City of Jaipur. The source of drinking water for Jaipur has been moving further and further away and is presently located at the Bisalpur Dam south of the city. Water is pumped up into storage tanks and from there distributed into the city. The project proposes to augment the water supply network by creating an infrastructure that collects rainwater from the roofs of buildings using the existing piping network and stores it.

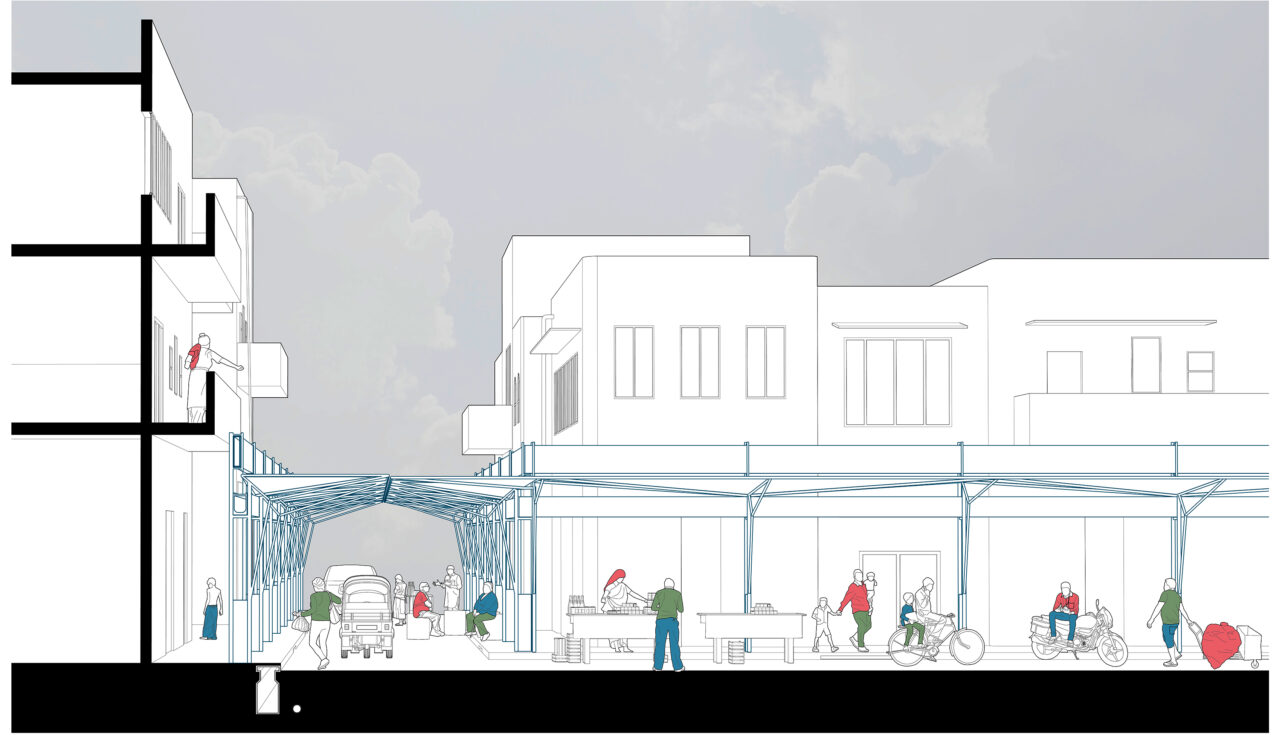

PROPOSED BAZAAR PERSPECTIVE SECTION

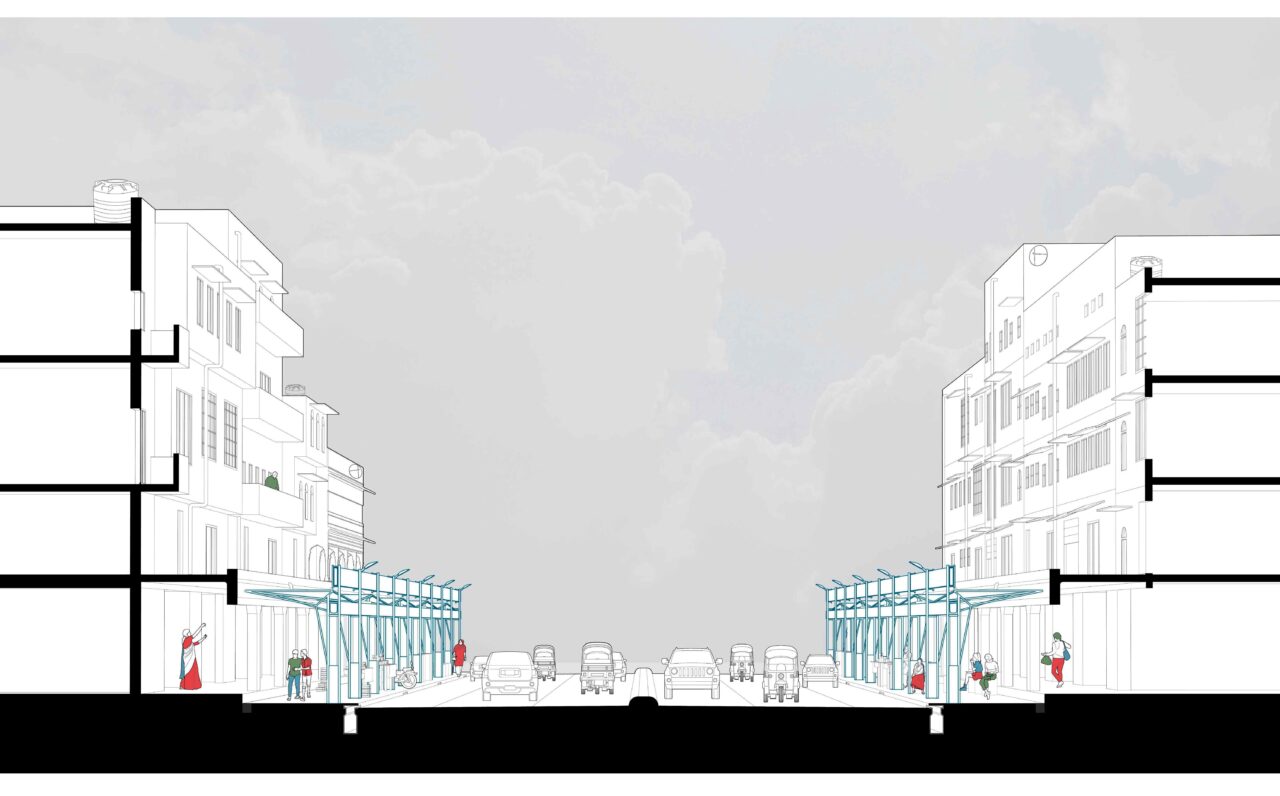

PROPOSED BAZAAR SECTION

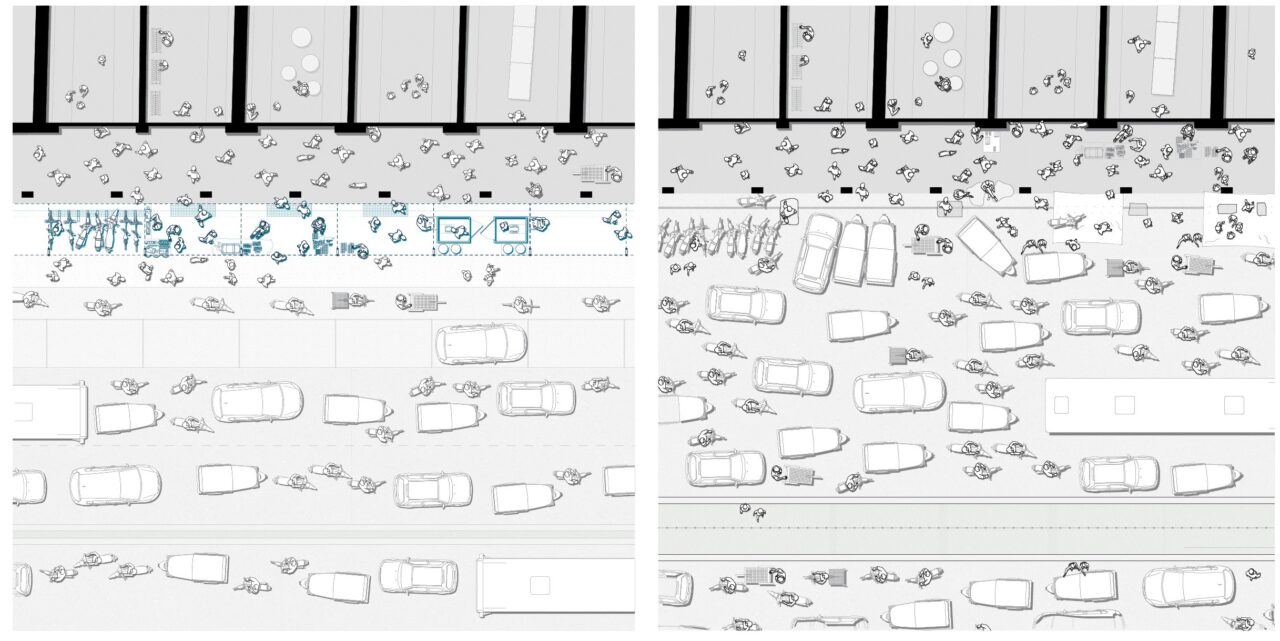

PROPOSED VS EXISTING BAZAAR PLAN

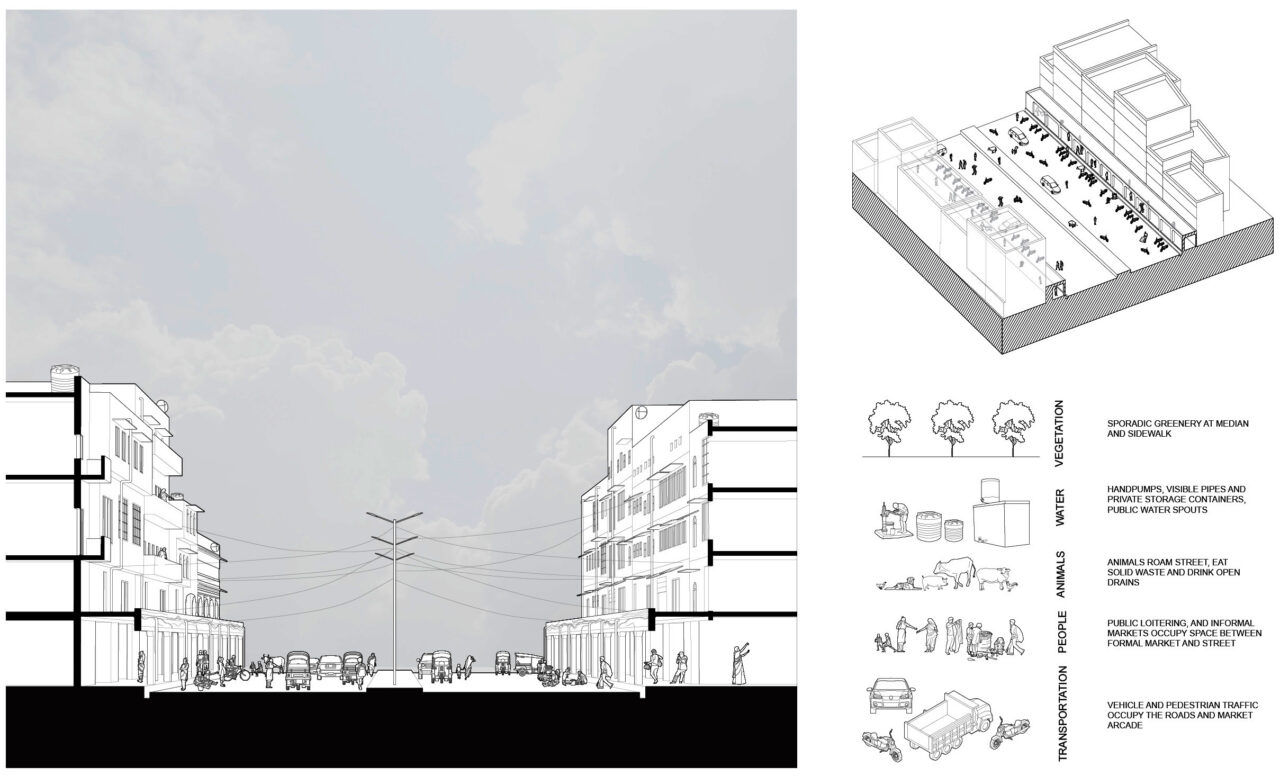

EXISTING BAZAAR CONDITION

PROPOSED CORNER PERSPECTIVE SECTION

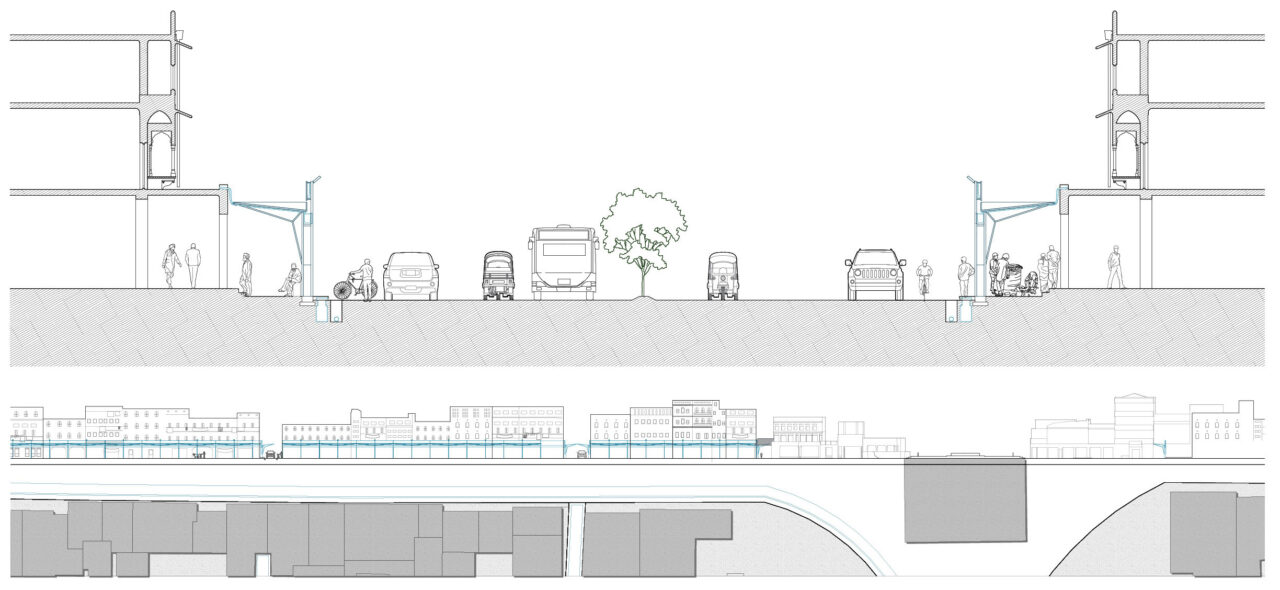

PROPOSED CORNER SECTION

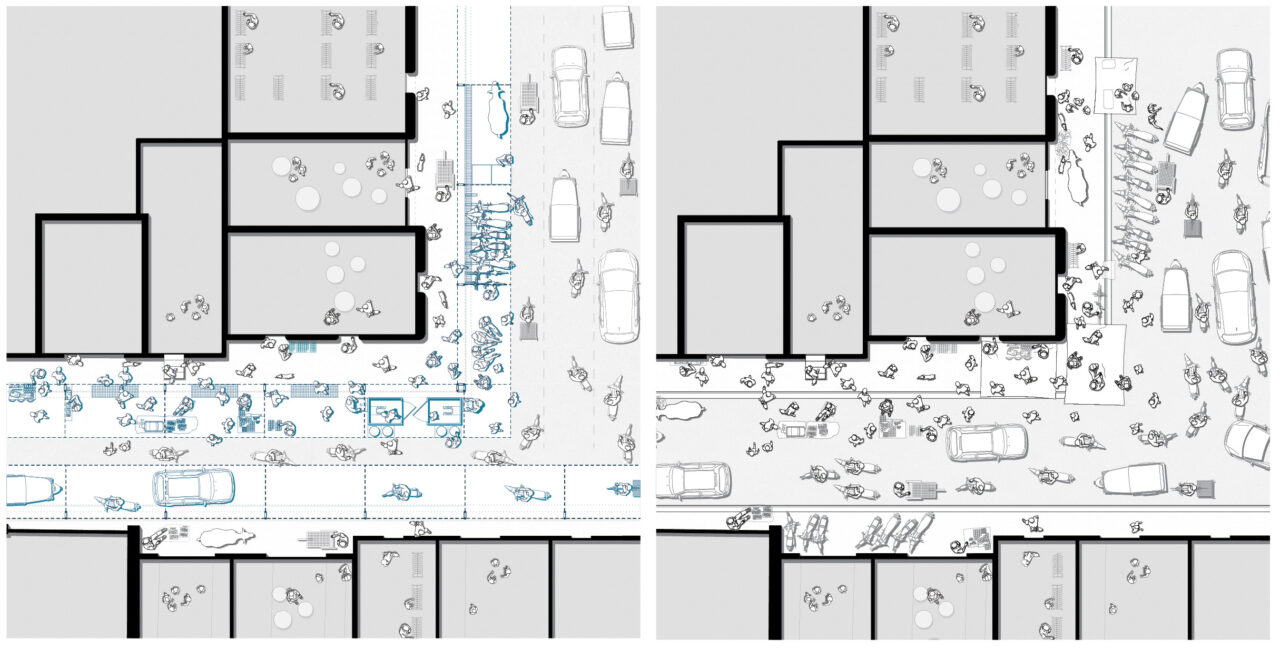

PROPOSED EXISTING PLAN VS CORNER

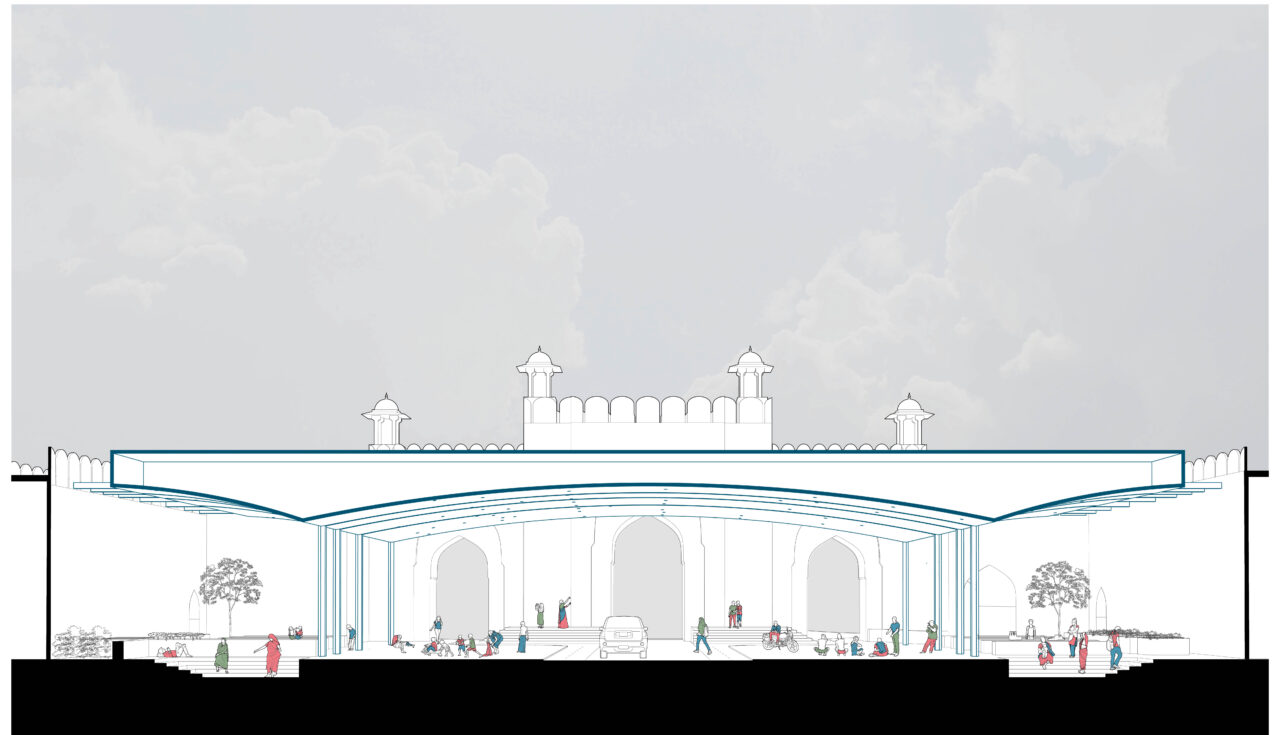

PROPOSED GATE PERSPECTIVE SECTION

Water collected from rooftops through the proposed infrastructural spine is collected is pumped and stored in an overhead tank that doubles as a shade structure in the gates leading into the city. These spaces, which currently act as thoroughfares for traffic are imagined as closed on certain days of the week so that activities like performances/ markets etc can take place under the shaded structure with the backdrop of the gate which represents the splendid architectural heritage of Jaipur.

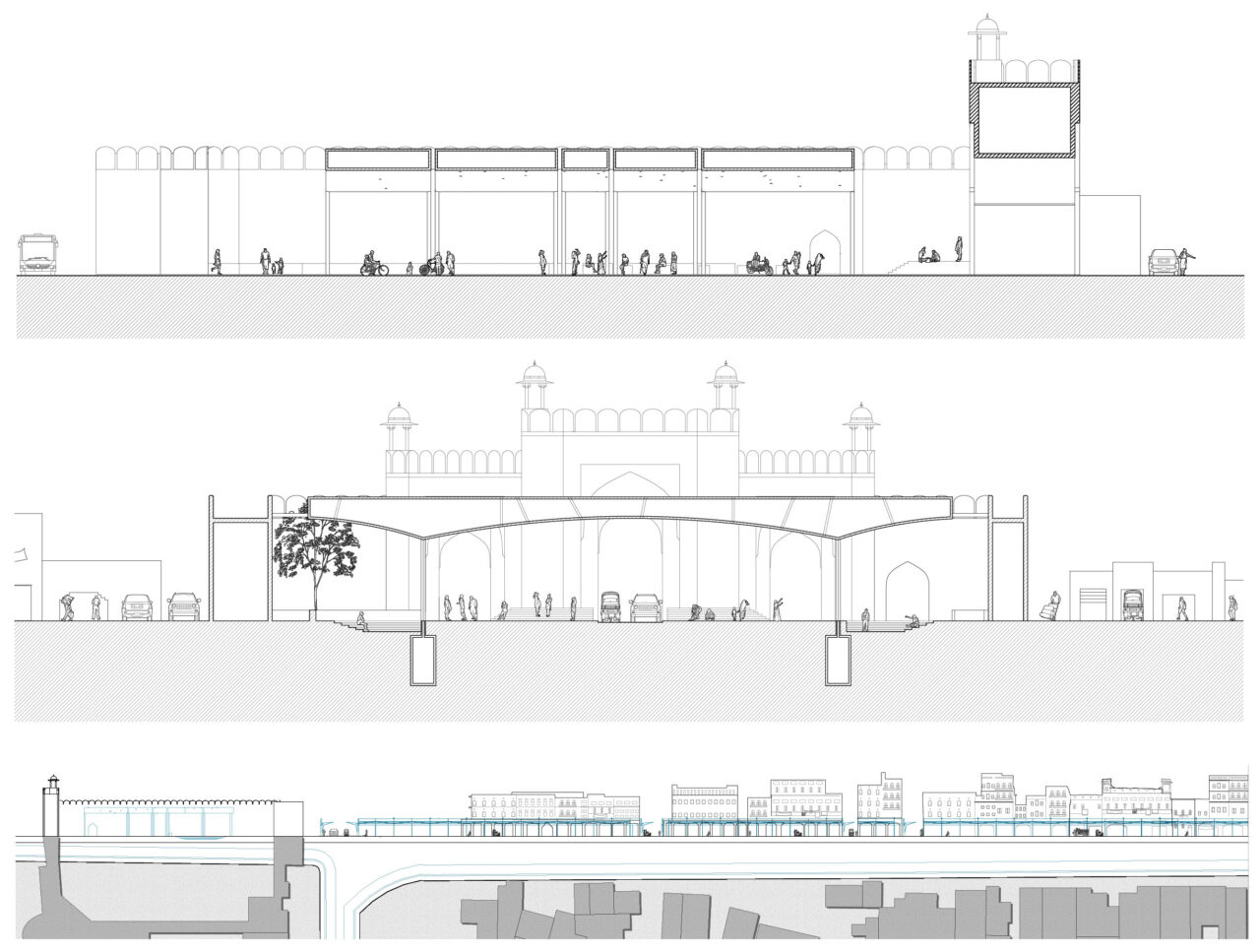

PROPOSED GATE SECTION

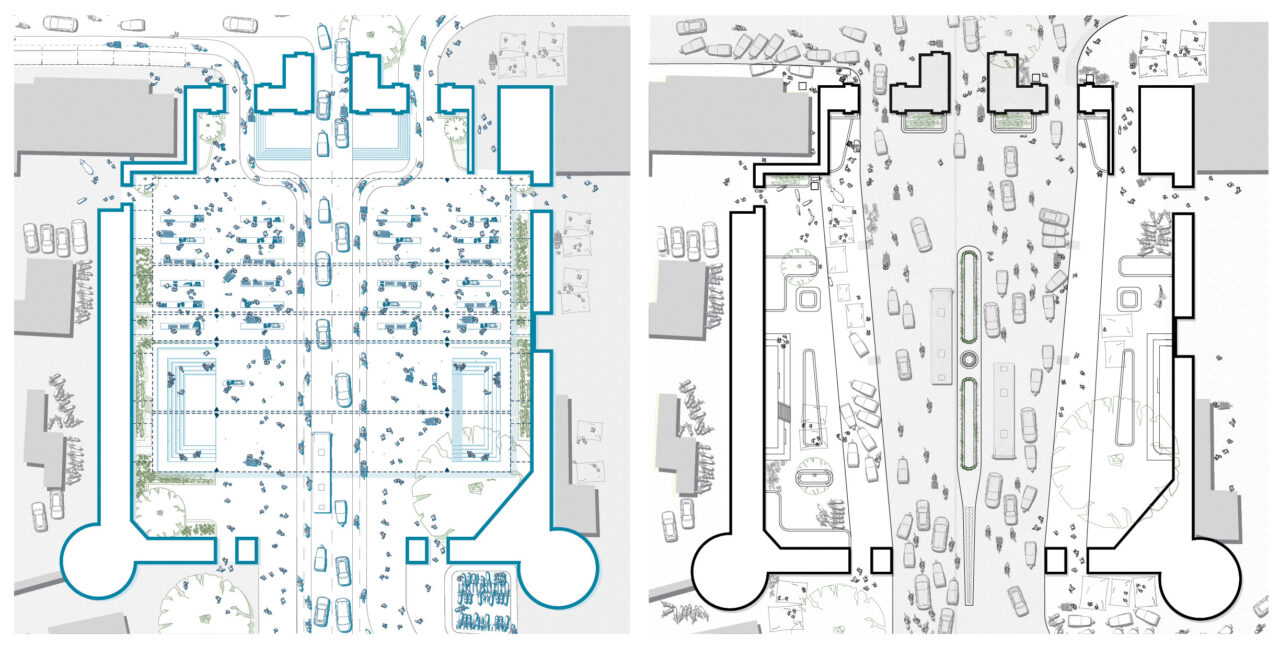

PROPOSED VS EXISTING GATE PLAN

Presently acting as throughfare for traffic, the gate is imgined as accomodating a water storage tank, holding rain water collected from rooftops of the city, for distribution and domestic use, that also doubles as a shade structure. The street section is re-imagined to be more efficient. The gate is imagined to be closed on certain days of the week so that activities such as performances, exhibitios, markets etc can take place in the gate enclosure.

Water Safety: The Case of the Walled City // Adrian Evans

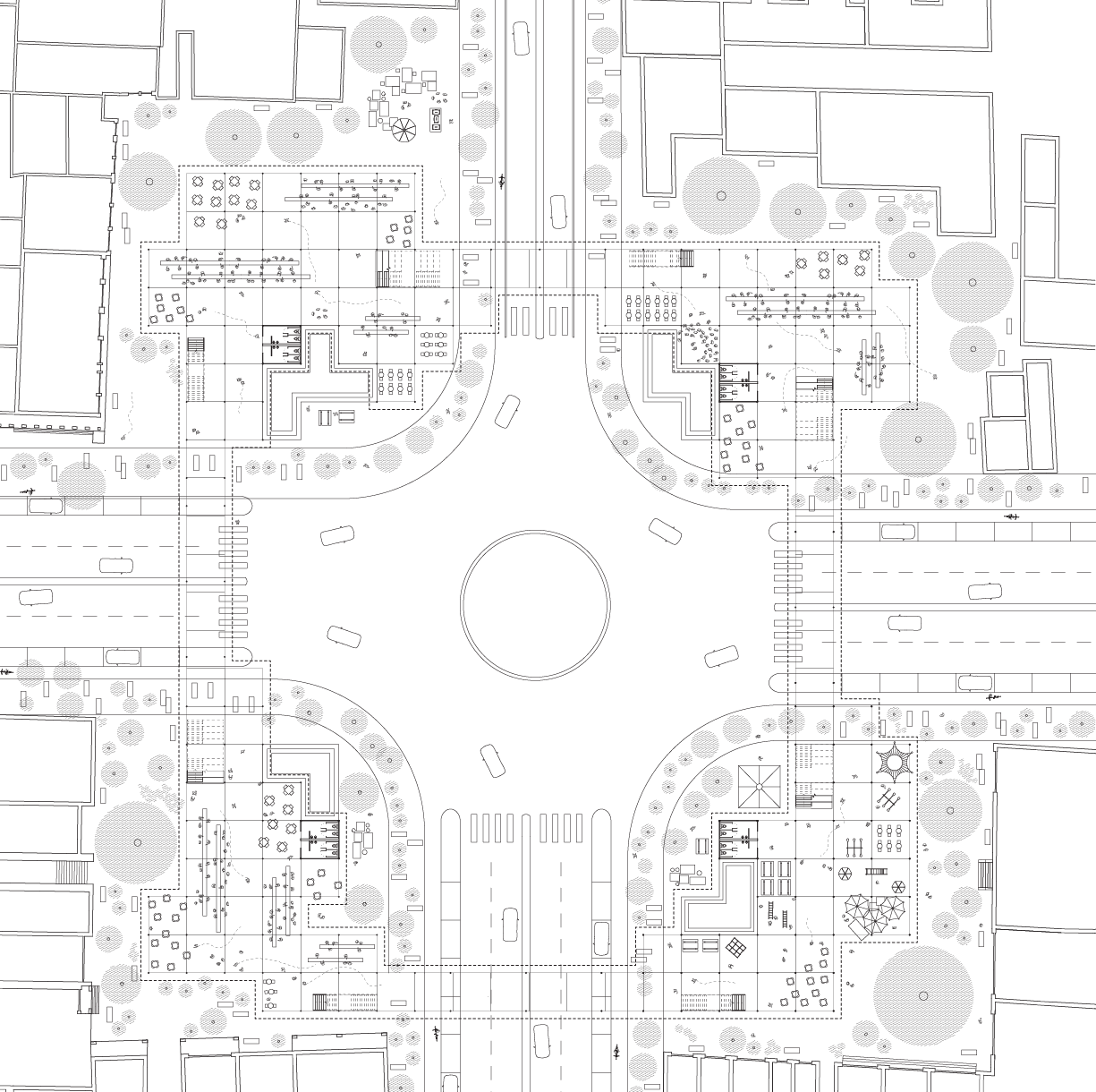

GROUND FLOOR PLAN
The ground floor of this structure consisters of organizing a market space for the activities that already go on in this area – providing shade and other public amenities. The square becomes a community gathering space that can be shared by all people in the walled city.

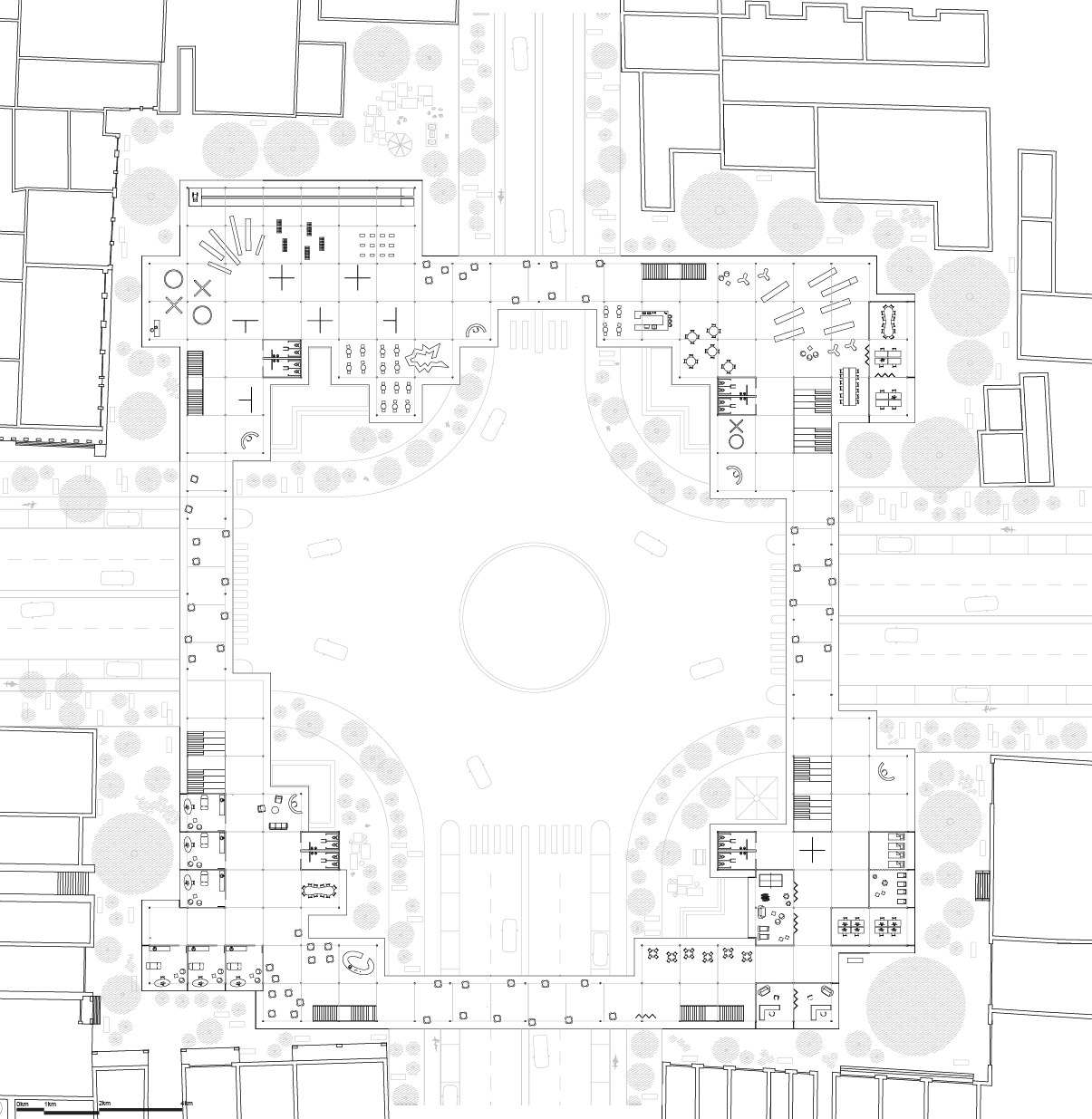

FIRST FLOOR PLAN
Adding identity to each portion of the square through infrastructure and program. There exists a clinic, a library, a community showcase space, and an after school care system.

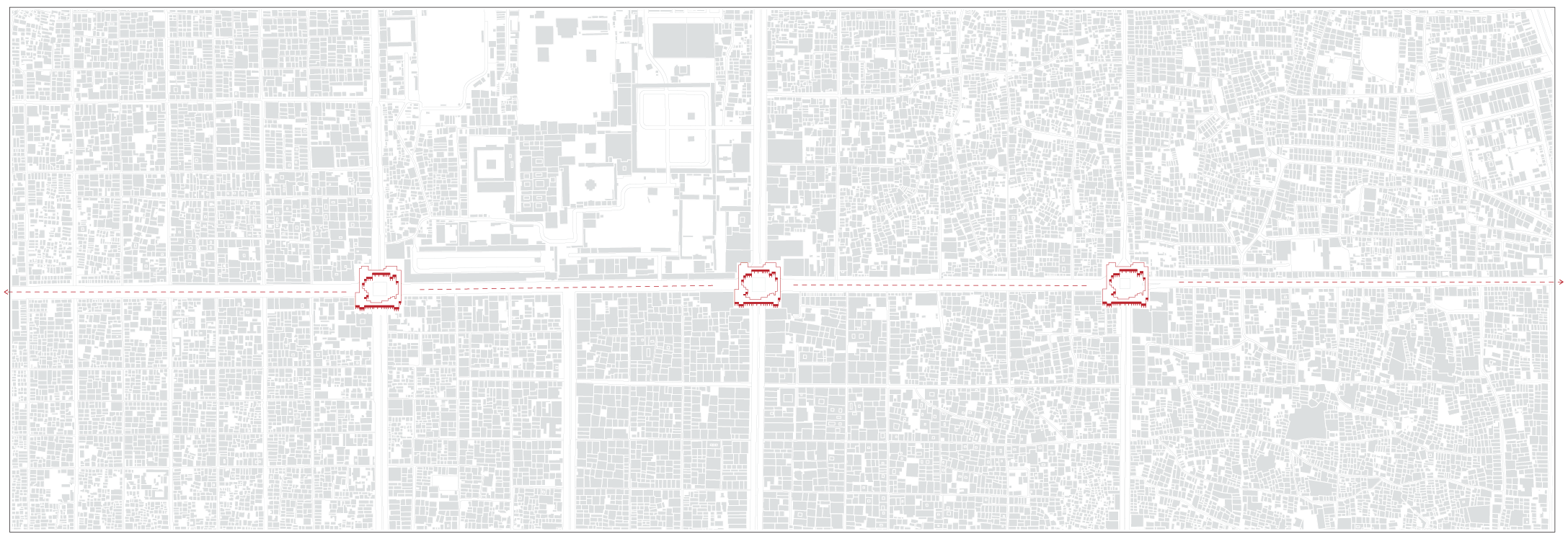

NODES OF INTERVENTION
This project takes the public squares as nodes of possibility that can be replicated elsewhere in the city, and especially along the main road of the bazaar in the walled city.

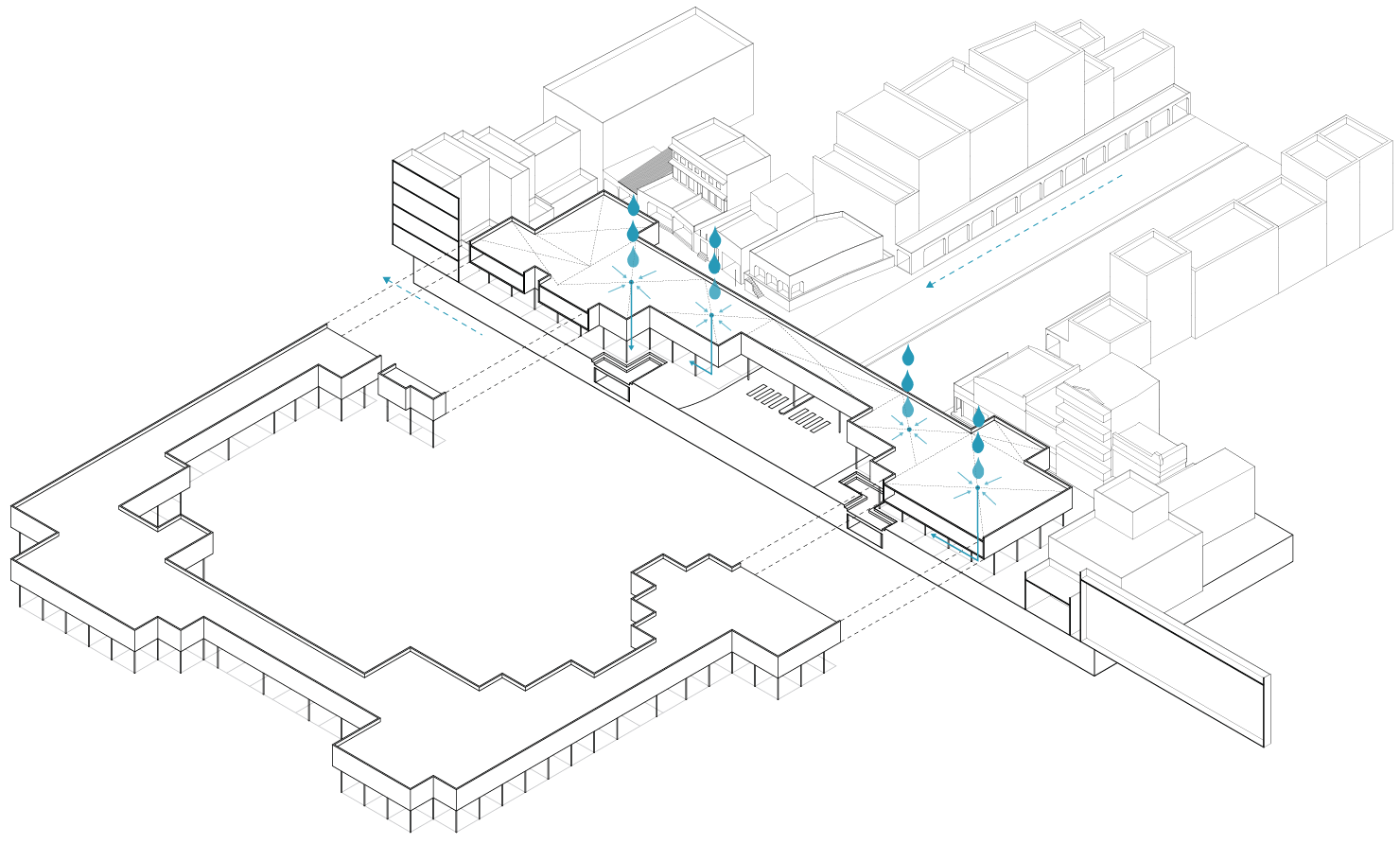

WATER SAFETY SYSTEM
This intervention is part of a wider system of rain water harvesting. It catches water before it hits the ground and stores it in undergorund tanks that are connected to the rainwater harvesting system adjacent to it in order to secure water safety in the square along with adding public amenities.

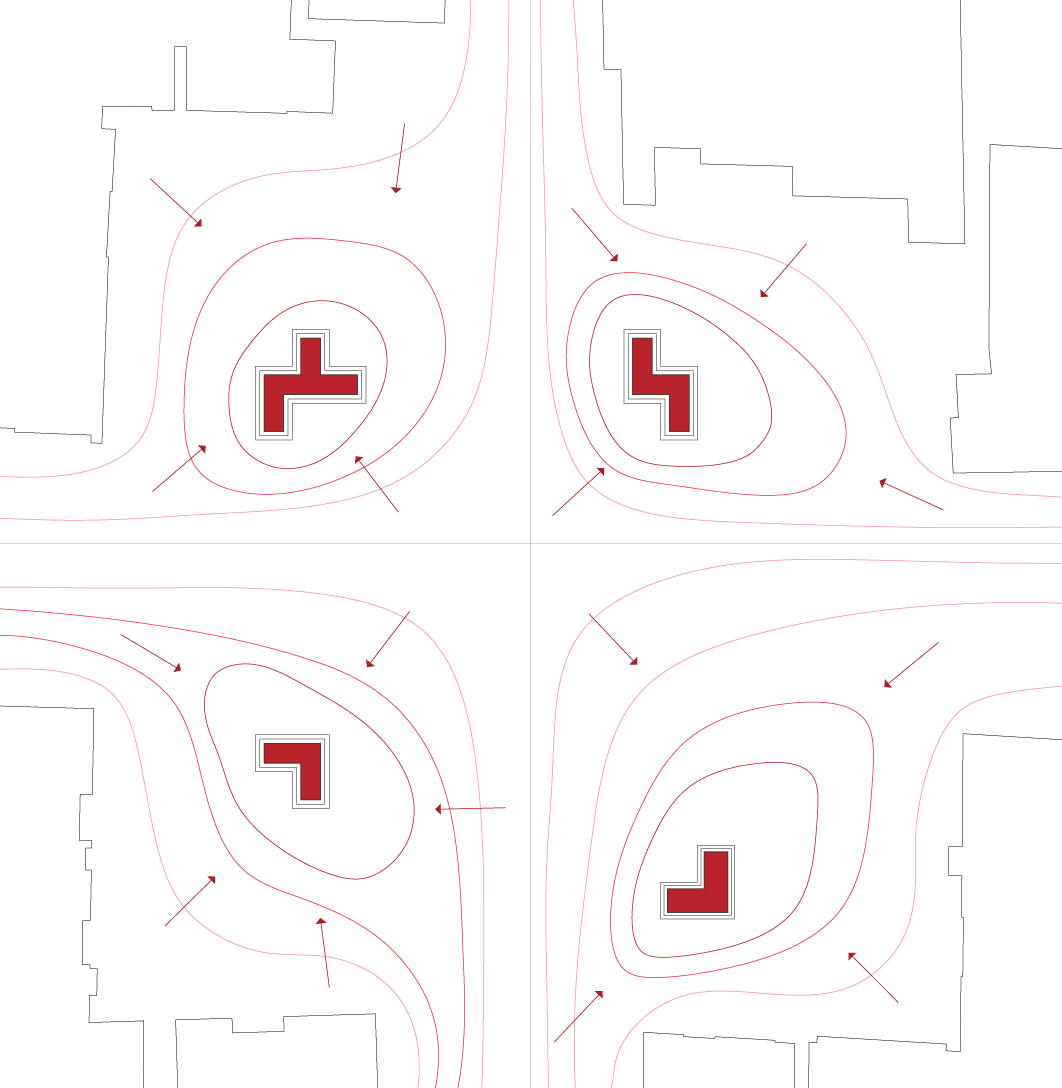

WATER CATCHMENT
During the monsoon season Jaipur experiences a large amount of rain in a short amount of time. Because of this, the streets tend to flood, creating a problem in public areas. This project proposes to pool water in a contained area in each square to try and mitigate this issue while also creating a gathering space.
